Chains Limited, Moxley
The company was founded in 1910 by Alfred Owen,  John Tunner Rubery, and Mr. Bornand at 16 Willenhall Road, Darlaston.

It was one of the first chain manufacturers in the country to make chain by machine.

The firm moved to Holyhead Road, Moxley in 1940, and during the Second World War produced amongst other things, anchor chains for Sunderland flying boats, and chains for Bailey Bridges, aircraft, motor vehicles, and artillery.

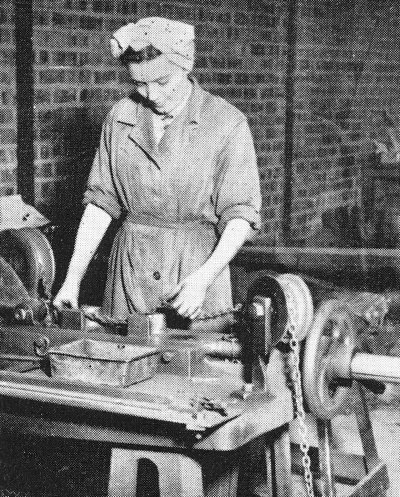

Wire rod being fed into a chain-making machine. From the Christmas 1950 edition of the staff magazine "Goodwill".

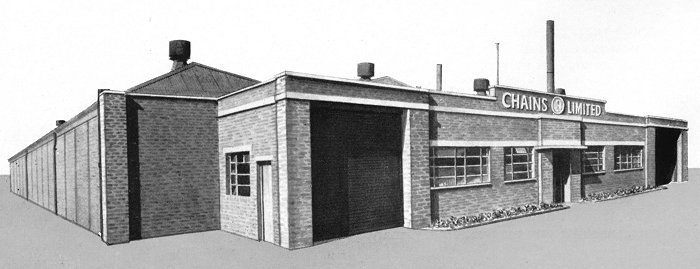

The Moxley factory.

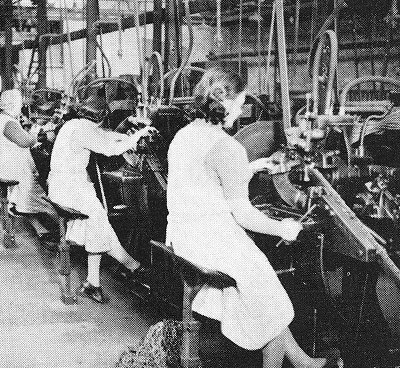

The electric welding machines and their operators. From the Christmas 1950 edition of the staff magazine "Goodwill".

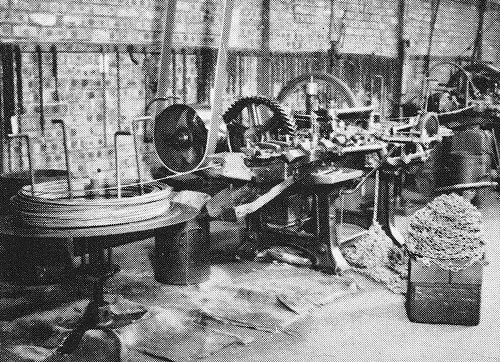

Wire or rod, depending upon the thickness of chain required, was fed into a machine to be cut to size, bent to shape, turned, and joined to the last link made.

Afterwards it was fed into an electric welding machine where the join on each link was welded.

After being tested and inspected, the chains were polished in revolving drums containing pieces of scrap leather and sawdust to give a fine finish. Chain was produced for aircraft, motor vehicles, ships, railways, and general engineering.

Completed lengths of chain were packed into wooden barrels ready to be transported to many parts of the country.


Above: Mr. C. H. Secker, Managing Director. From the Christmas 1950 edition of the staff magazine "Goodwill".



Left: Calibration and testing. From the Christmas 1950 edition of the staff magazine "Goodwill".
