Some
of the company's products from the 1950s and 1960s
Sanders produced a wide range of
electrical equipment, from switchgear of all kinds, to
fuseboards, switches, cooker control units, and plugs
and sockets. I have included a good selection of the
many products produced by the company.
Sanders' products were always well-rated and built to
the highest standards.
Sandaspeed and Sandalite fuse units
The porcelain fuse units were
introduced by the company in 1937 and were available
with a rewireable, semi-closed carrier, or a carrier
holding an H.R.C. cartridge fuse. There were three
types. One for panel mounting, complete with mounting
screws, another with front connections at both ends, and
a third with a busbar connector at one end and a front
connection at the other. Sandaspeed fuse units were
rated at 500 volts whereas Sandalite fuse units were
rated at 250 volts. Sanders purchased the ceramic bases
and carriers, and made, and fitted the contacts and
connections.
|

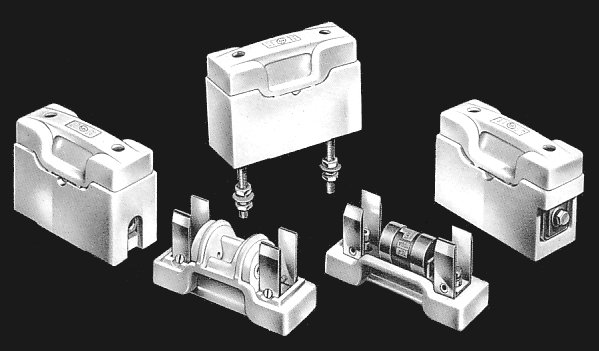

Sandaspeed fuse units.
| Fuseboards
Sanders produced a range of fuseboards using the
company's fuse units. They were made of zinc-plated
sheet steel, and finished in hammered grey
stove-enamelled paint. |
|

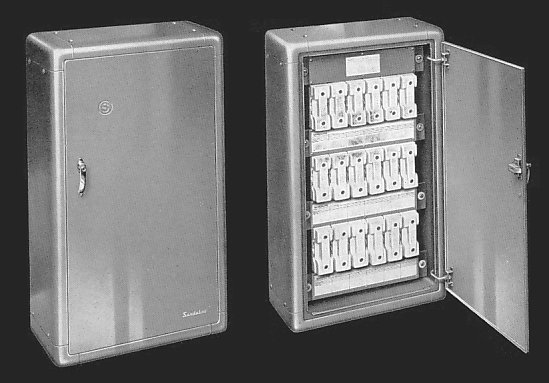

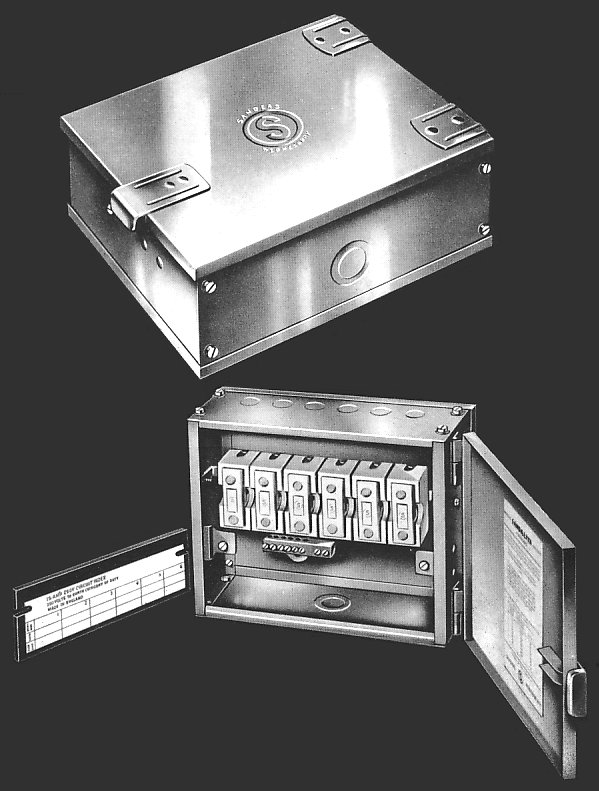

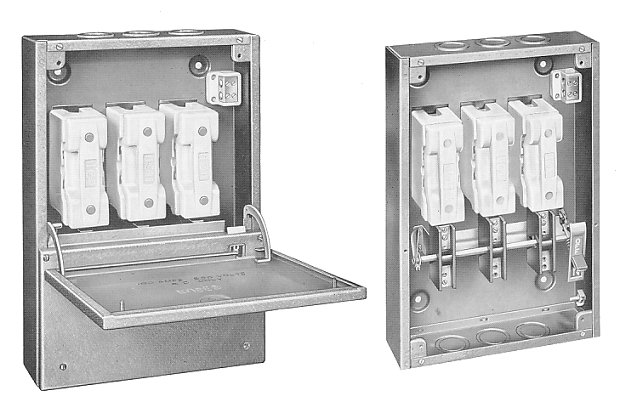

Sandalita fuseboards. |
|
| |

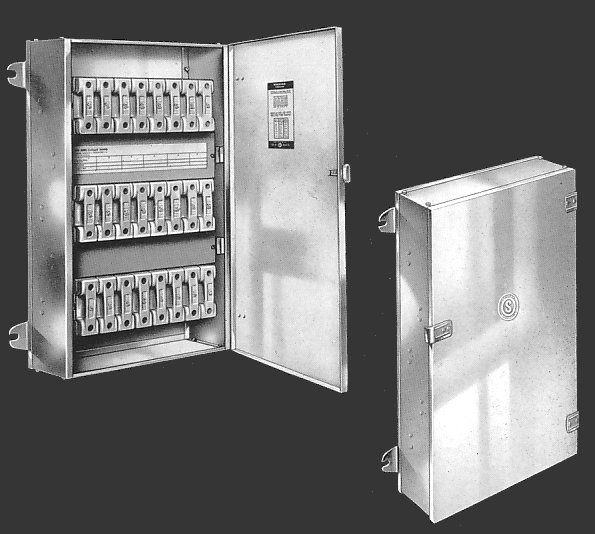

Sandasteel fuseboards. |
|

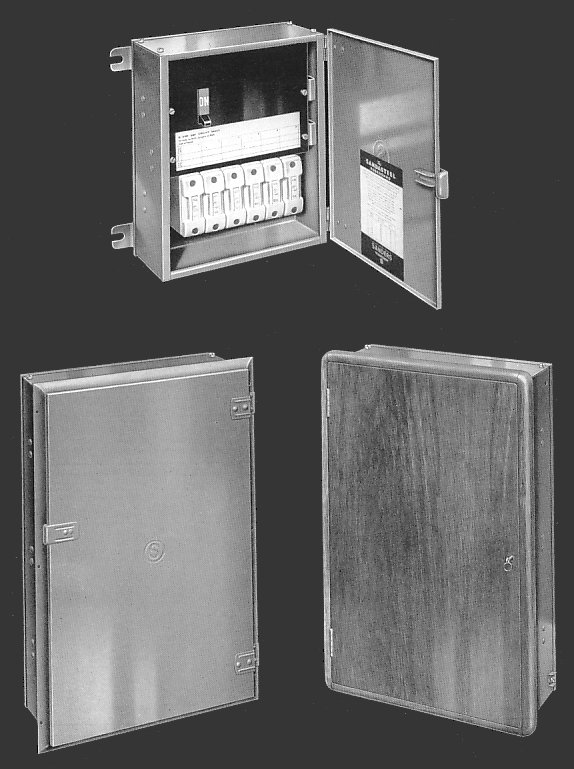

Another Sandasteel fuseboard. |
|
| |
A Sandaline fuseboard with cast
aluminium corners. |
| Switchfuses
Sanders produced a range of 500 volt switchfuses which
used Sandaspeed fuses. Like the fuseboards they were
finished in the company's standard hammered grey stove
enamel. |
|

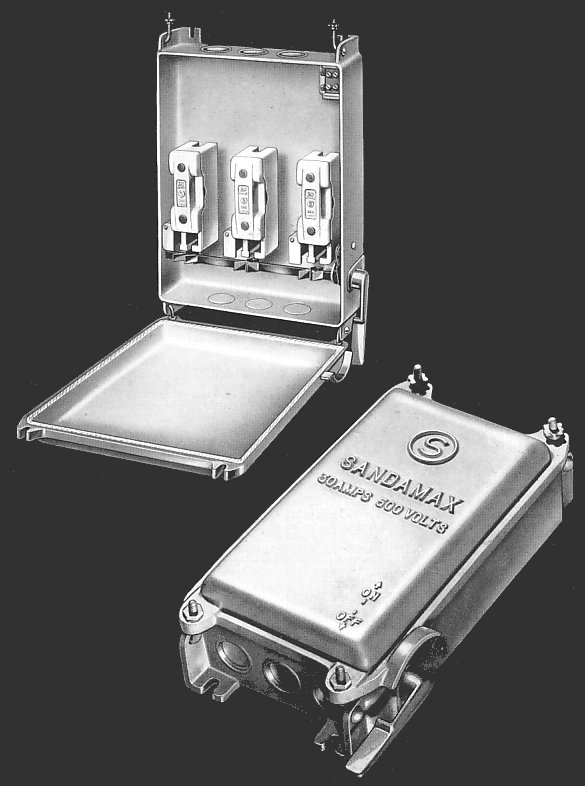

Sandamax switchfuses which had a
soft grey iron case. |
|
| |

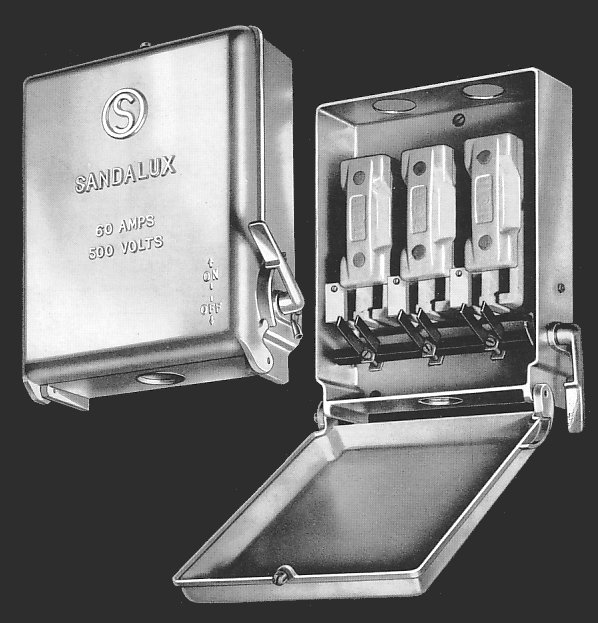

A Sandalux switchfuse. |
 |

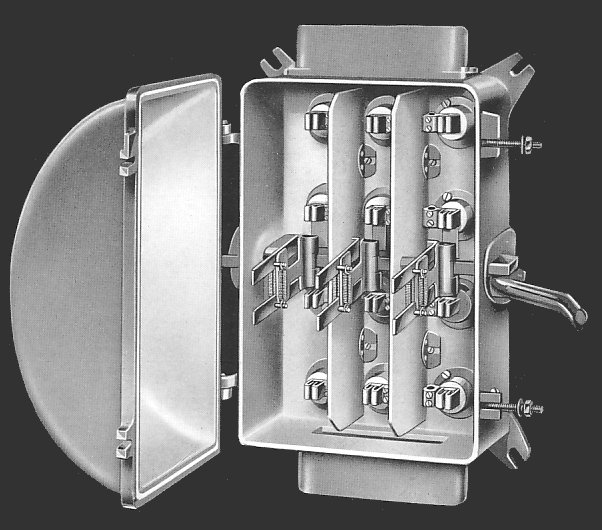

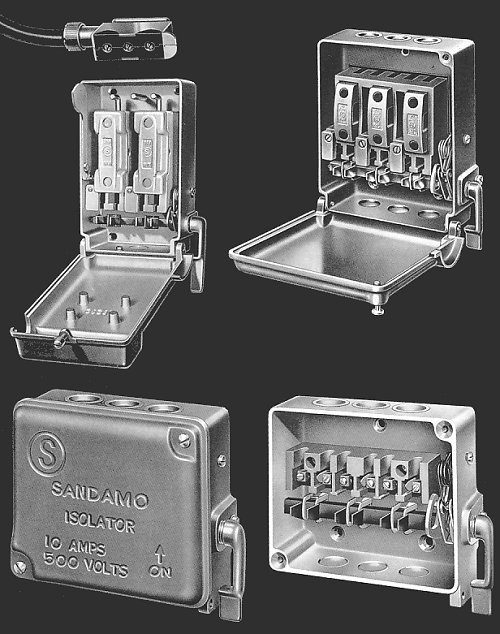

Sandamo switchfuses and
isolating switch. |

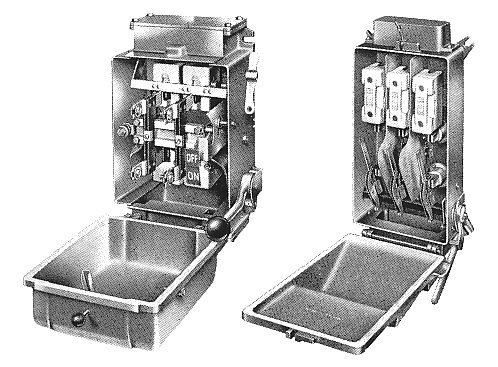

| On the left is a Sandaclad
Isoearth switchfuse, and on the right is a Superior
switchfuse. |
 |
|

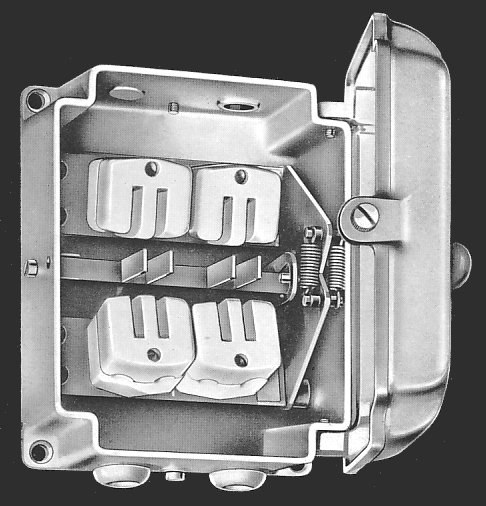

The Sandacee A.C. switchfuse. |
|
| Sandacee 500 volt switchfuses
and switches were available in single pole, two pole and
three pole versions, rated at 20, 30, 60, or 100 amps.
When the fuse cover is opened it automatically puts the
switch in the off position. |
 |
 |

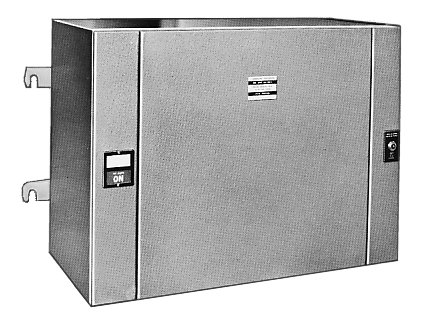

| A Sandaclad 800 amp
heavy duty switchfuse with interlocked lid and
operating mechanism. |
|
A Sandaclad switch and component parts.
 |

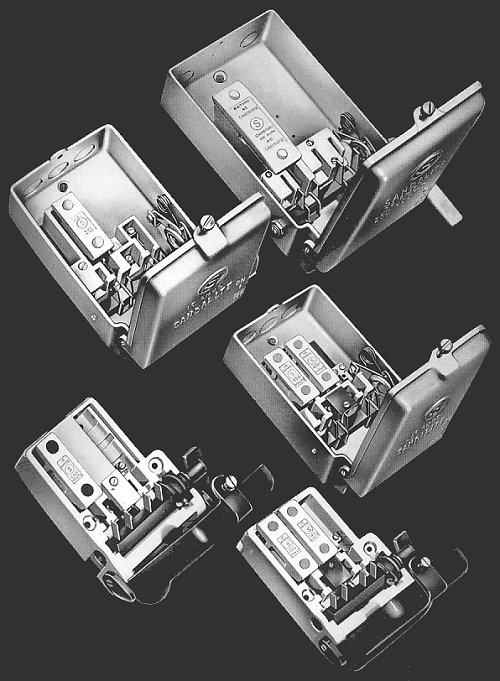

Sandalite switchfuses for 250
volt operation. |
| |
A Superior changeover switch rated
at 500 volts. |
 |
A 500 volt Sandalux changeover
switch. There were two
pole, three pole, and four pole versions rated at 20
amps or 30 amps. |
| Switchboards and
accessories |
| Sanders' switchboards were built to individual
customer's requirements. They were available in three
forms: Type 'A' in which
the equipment is wholly or partially covered with flat
steel panels.
Type 'B' consisting of an
open framework carrying a busbar chamber.
Type'C' with an angle iron
framework and busbar chambers.

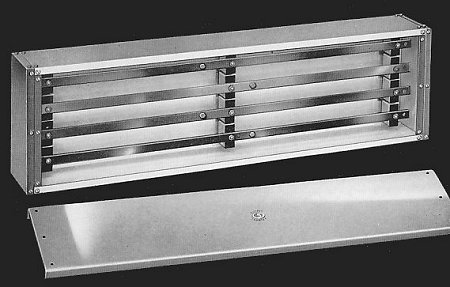

A busbar chamber. |
A type 'A' switchboard. |

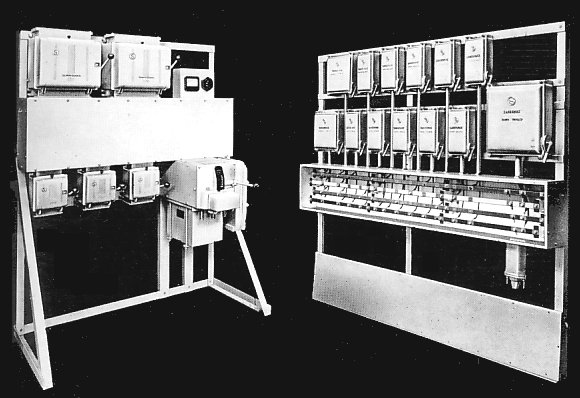

A type 'B' and a type 'C' switchboard.

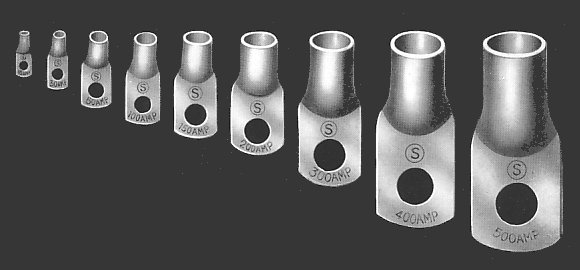

Pressed cable sockets.
 |

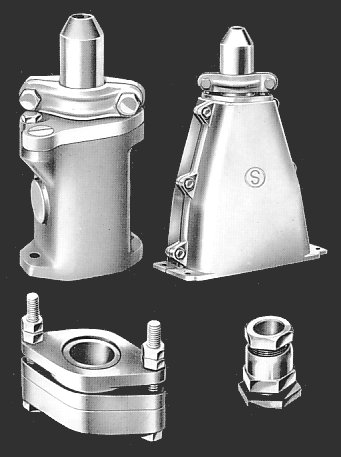

Sanders' range of glands and
sealing chambers. |

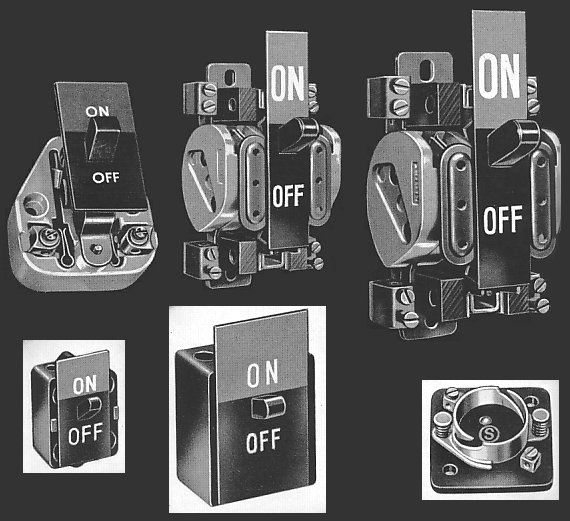

| Toggle switches, micro break
A.C. switches, and a lampholder. |
 |
|

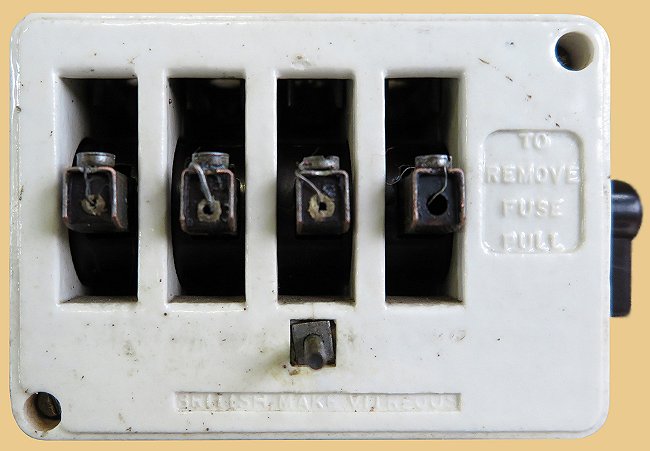

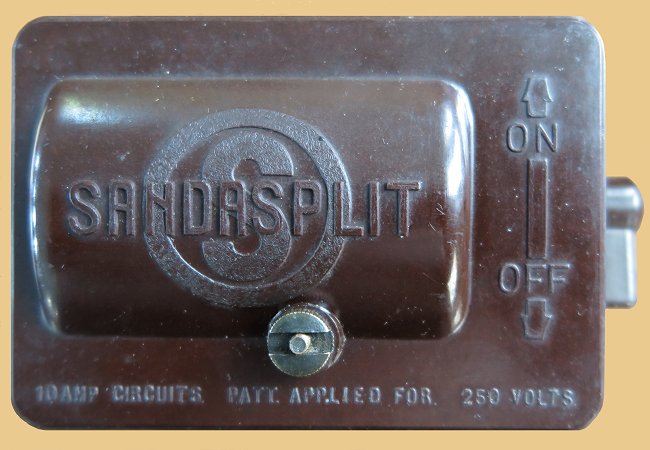

A Sandasplit fused switch. |
|
The Sandasplit fused switch with
the cover removed. |
 |

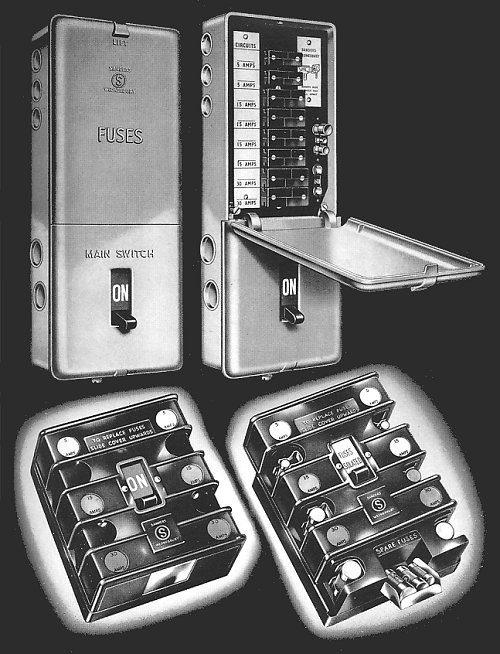

250 volt consumer units. |

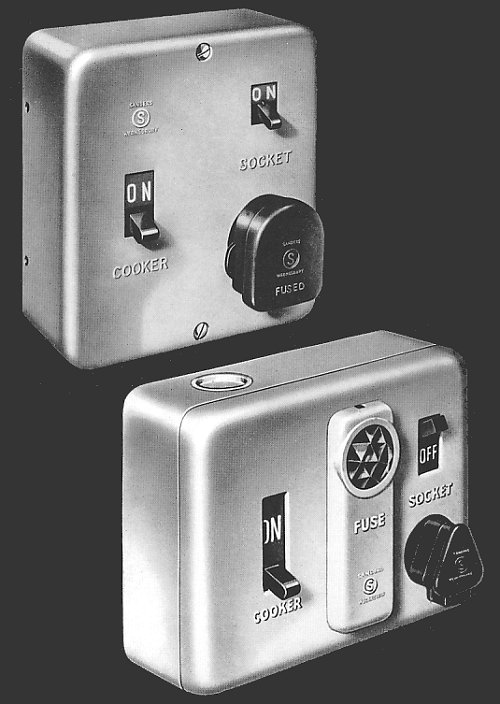

| Sandella and Sandeena cooker
control units. |
 |
 |
13 amp switched and unswitched
sockets. |

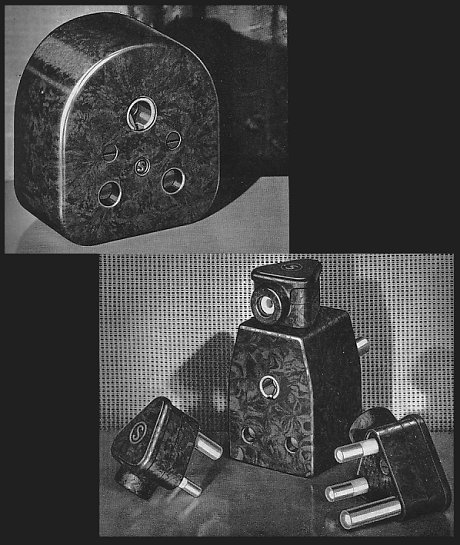

| Screened safety socket
outlets, plugs and adaptors. |
 |
|

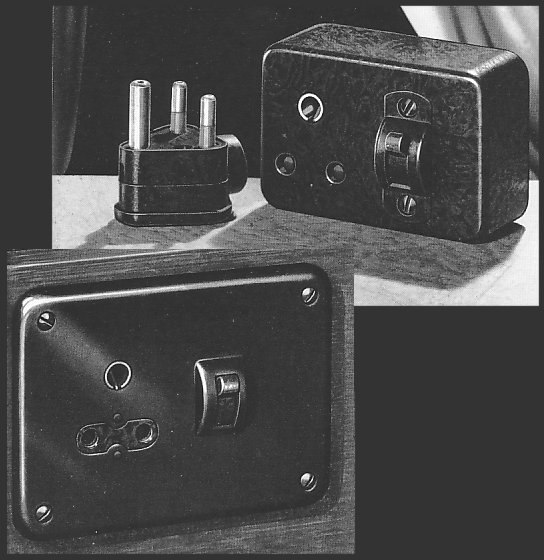

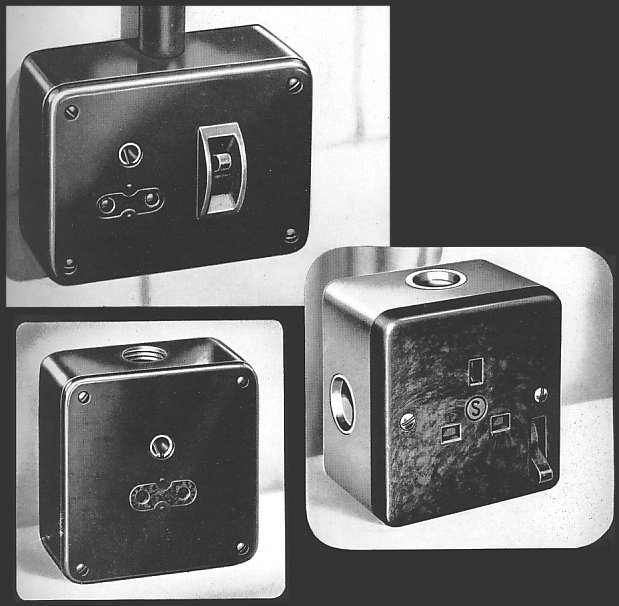

Two switched sockets, and one
unswitched socket. |
|
|

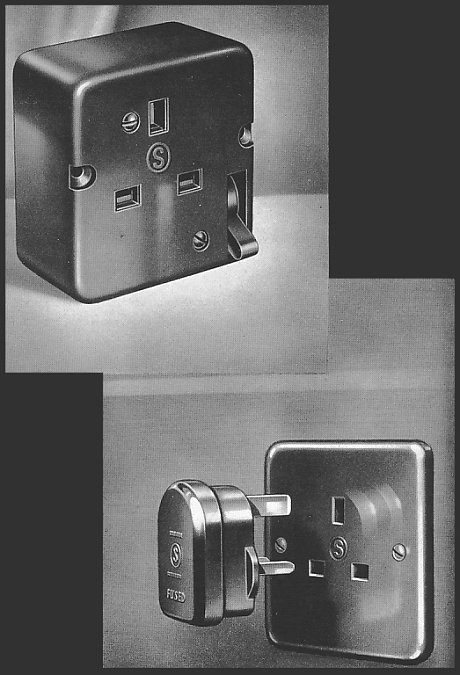

Switched sockets. |
 |
 |

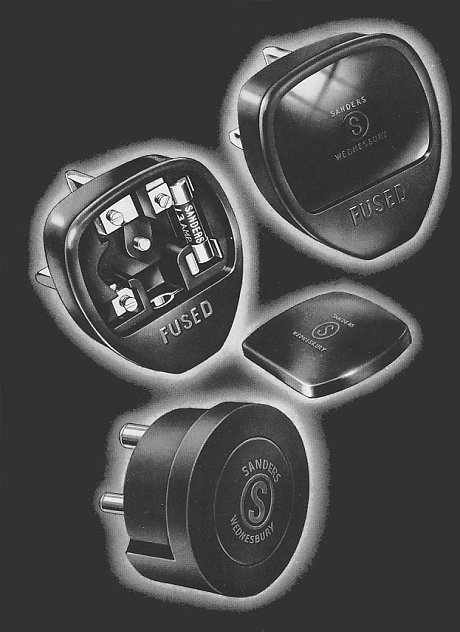

Unbreakable and resilient
rubber fused plugs. |
|

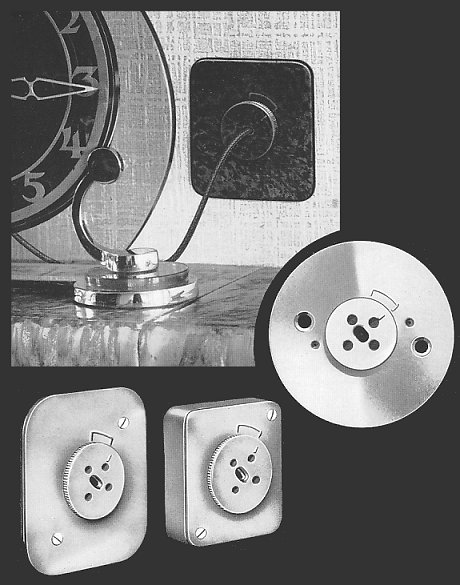

Fused clock connectors. |
 |
